특수 PCB - 전문적인 고품질 PCB생산업체

마이크로 울트라 미세 사이즈 PCB

모델: Micro PCB,Ultra small size PCB

원자재 : FR-4

층수 : 4Layers

컬러 : Green/White

완성두께 : 0.6mm

동박두께 : 1OZ

Min Trace : 6mil(0.15mm)

Mim Space : 6mil(0.15mm)

표면처리 : Gold-plating

금도금 두께 : 0.2μm(8U)

ipcb Capacity min finish board size : 0.5mm*1.0mm

See details

4oz해비 커파 마그네틱 코일 PCB

모델 : 4oz thick copper magnetic coil PCB

원자재: FR-4

층수 : 12Layers

컬러 : Yellow

완성두께 : 2.0mm

외층 동박 두께 : 4OZ

내층 동박 두께 : 3OZ

표면처리 : Immersion Gold

스페셜 프로세스 : thick copper pcb+magnetic coil pcb

응용영역 : Magnetic coil PCB in power supply

See details

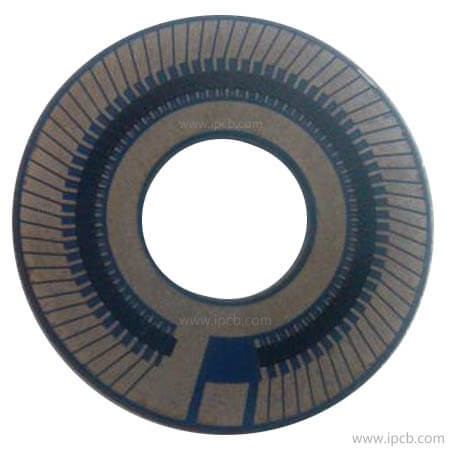

밸브 센서pcb(세라믹 원판)

모델 : Throttle door sensor pcb

원자재 : ceramic pcb

층수 : 2Layers pcb

컬러 : White substrate

완성두께 : 1.6mm

동박두께 : 1OZ

표면처리 : gold-plated pcb

스페셜 프로세스 : gold-plated pcb + ceramic substrate pcb

응용 영역 : Throttle door sensor pcb

See details

신에너지 자동차 PCB

모델: New energy vehicle PCB

층수: 4L

보드 두께: 5.0mm

Minimum aperture: 1.0 mm

Minimum line width / distance: 0.5/0.27mm

내층 동박 두께: 3.0mm

외층 동박 두께: 1oz

표면처리: ENIG

Minimum distance from hole to line: controlled depth milling + bending

See details

카운트 싱크 홀 PCB board

모델 : Step slot PCB board

원자재 : FR-4 TG170

층수 : 4Layers

동박두께 : 1OZ

완성두께 : 2.0mm

표면처리 : Immersion Gold

Trace/Space : 6mil/6mil

Min Hole : 0.3mm(12mil)

스패셜 프로세스 : There is a step slot

응용 영역 : Module PCB board

See details

레이저 repair of carbon film PCB

모델 : Laser repair of carbon film PCB

원자재 : FR-4+carbon film PCB

층수 : 2Layers

동박두께 : 1OZ

완성두께 : 1.0mm

표면처리 : Immersion Gold

Trace/Space : 6mil/6mil

Min Hole : 0.3mm(12mil)

스페셜 프로세스 : printing carbon film, laser repair resistance value

응용영역 : RF isolator PCB, RF circulator PCB, RF resistor PCB, terminal load PCB, attenuation chip PCB, coaxial attenuator PCB, filter PCB, combiner PCB, duplexer PCB, power divider PCB, waveguide series PCB, antenna PCB, attenuation chip PCB

See details

카븐 하이브리드 integrated PCB

모델 : Carbon film hybrid integrated PCB

원자재 : Ceramic Substrate+Carbon oil

층수 : 2Layers

완성두께 : 0.6mm

동박두께 : 1OZ(35um)

Line width: 0.2mm

Minimum aperture: 0.3mm

표면처리 : gold-plated

응용영역 : computer, automobile, communication, instrumentation, power supply

See details

저온도 Co-fired Ceramic PCB(LTCC PCB)

사이즈: max. 100 mm × 100 mm

패턴폭 및 간격: min.0.075mm/0.15mm

컨닥터 두께: 10 ~ 25 μ M

패턴 폭 토러런스: ± 10 μ M

Stack alignment accuracy: ≤ 30 μ M

스루홀 사이즈: min.0.1mm

Sintering shrinkage accuracy: ± 0.2%

Distance between conductor and shape edge: min.0.2mm

Distance between metal through hole and line: min.0.15mm

Overlap distance of resistance / Conductor: min.0.15mm

Resistance size: min.0.15mm × 0.15mm

Total number of media layers: ≤ 40 layers

어플리케이션 : Filter PCB, diplexer PCB, LTCC chip antenna PCB

See details

단면 PCB

모델 : 1Layer Glass PCB

원자재 : Glass+Copper

층수 : 1Layer Glass PCB

컬러 : Transparent glass base

완성두께 : 1.0mm

동박두께 : 1OZ(35um)

표면처리 : Immersion Gold

금 도금 두께 : >=3U"

특성: high conductivity, high transparency, small volume, small calorific value

See details

AlN 세라믹 PCB

모델 : AlN ceramic PCB

원자재 : Ceramic PCB, Ceramic Substrate

층수 : 2Layer Ceramic PCB

컬러 : White

완성두께 : 1.0mm

표면처리 : Immersion Gold

금 도금 두께 : >=3U"

Minimum aperture : 0.8mm

응용 영역 : communication antenna, automotive power control module, AC converter, dimming system, igniter, DC-AC converter, switching machine, solid state relay, rectifier bridge, high-power LED, etc

See details
